LM2936BM-5.0/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 50MA 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 684
Can ship immediately
Pricing:
- 1$2.31
- 10$2.0767
- 95$1.95953
- 190$1.6695
- 570$1.37164
- 1,045$1.1365
- 2,565$1.05812
- 5,035$1.01893
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.12V @ 50mA
- Current - Output:50mA
- Current - Quiescent (Iq):9 µA
- Current - Supply (Max):2.5 mA
- PSRR:60dB (120Hz)
- Control Features:Shutdown
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
Related Products
IC REG LIN POS ADJ 500MA 8UMAX
- 1: $2.31000
- 10: $2.07735
- 50: $1.95938
IC REG LIN 5V 100MA DDPAK/TO263
- 1: $2.34000
- 10: $2.09842
- 45: $1.98000
IC REG LIN 8V 1A DDPAK/TO263-3
- 1: $2.35000
- 10: $2.11394
- 45: $1.99390
IC REG LIN 10V 1A DDPAK/TO263-3
- 1: $2.35000
- 10: $2.11394
- 45: $1.99390
IC REG LIN 9V 1A DDPAK/TO263-3
- 1: $2.35000
- 10: $2.11394
- 45: $1.99390
IC REG LIN 2.5V 1.5A DDPAK
- 1: $2.36000
- 10: $2.11977
- 45: $2.00018

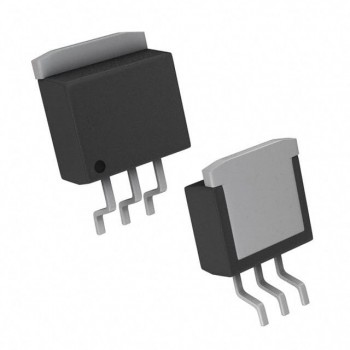

IC REG LIN 1.8V 1.5A DDPAK
