ADP7105ARDZ-3.3
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 500MA 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP7105ARDZ-3.3 Datasheet
-
ECAD Model
- Share
In Stock: 227
Can ship immediately
Pricing:
- 1$6.12
- 98$5.20051
- 196$4.50709
- 588$3.83678
- 1,078$3.23585
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.55V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):900 µA
- Current - Supply (Max):1.6 mA
- PSRR:60dB ~ 50dB (10kHz ~ 100kHz)
- Control Features:Enable, Power Good, Under Voltage Lockout
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

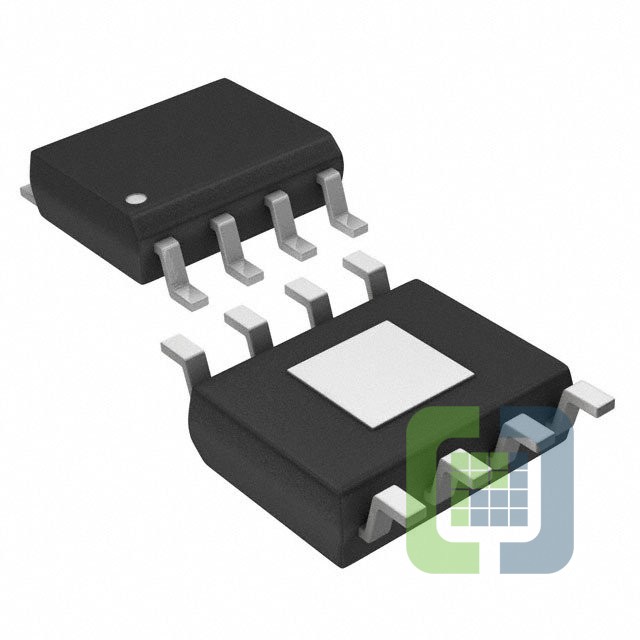

- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOIC-EP
