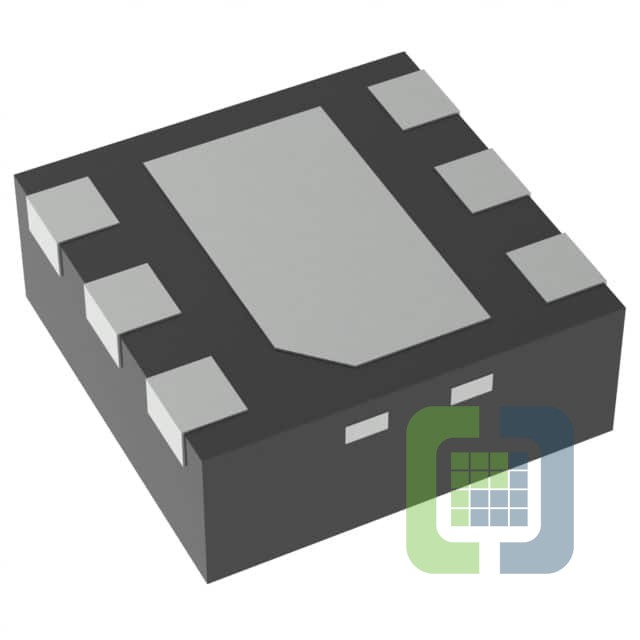

TPS715A30DRVT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3V 80MA 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 675
Can ship immediately
Pricing:
- 1$1.42
- 250$0.87076
- 500$0.7695
- 1,250$0.6075
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.12V @ 80mA
- Current - Output:80mA
- Current - Quiescent (Iq):4.2 µA
- Current - Supply (Max):5.8 µA
- PSRR:60dB (100kHz)
- Control Features:-
- Protection Features:Over Current, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (2x2)
