LT3055HMSE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 16MSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3055HMSE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 215
Can ship immediately
Pricing:
- 1$6.58
- 25$4.36612
- 100$3.61011
- 250$3.42962
- 500$3.35224
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):40V
- Voltage Dropout (Max):0.59V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):130 µA
- Current - Supply (Max):25 mA
- PSRR:85dB (120Hz)
- Control Features:Current Limit, Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount
- Package / Case:16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:16-MSOP-EP
Related Products

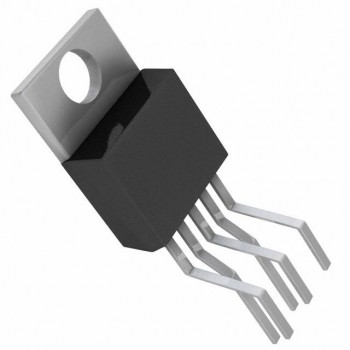

IC REG LINEAR 1.8V 1.5A DDPAK
- 1: $6.59000
- 10: $5.92251
- 45: $5.59908

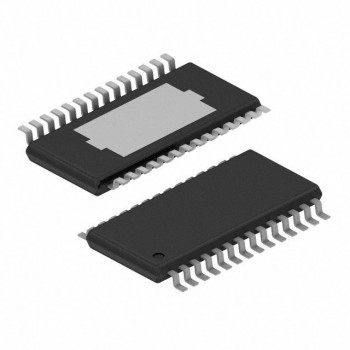

IC REG LIN 2.5/3.3V 28HTSSOP
- 1: $6.64000
- 10: $6.00040
- 50: $5.72101

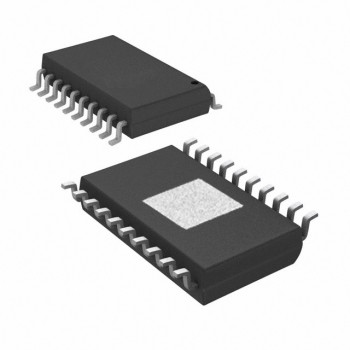

IC REG LIN 3.3V/1.8V 20SO PWRPAD
- 1: $6.74000
- 10: $6.05540
- 25: $5.72518

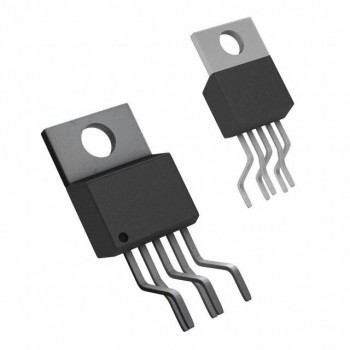

IC REG LINEAR 3.3V 3A TO220-5
- 1: $7.06000
- 10: $6.38156
- 45: $6.08474
IC REG LIN 5V 500MA DDPAK/TO263
- 1: $9.42000
- 50: $7.65680
- 100: $6.64830

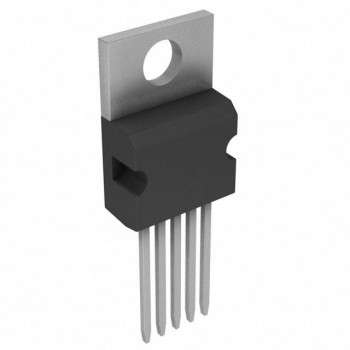

IC REG LINEAR POS ADJ 3A TO220-5
