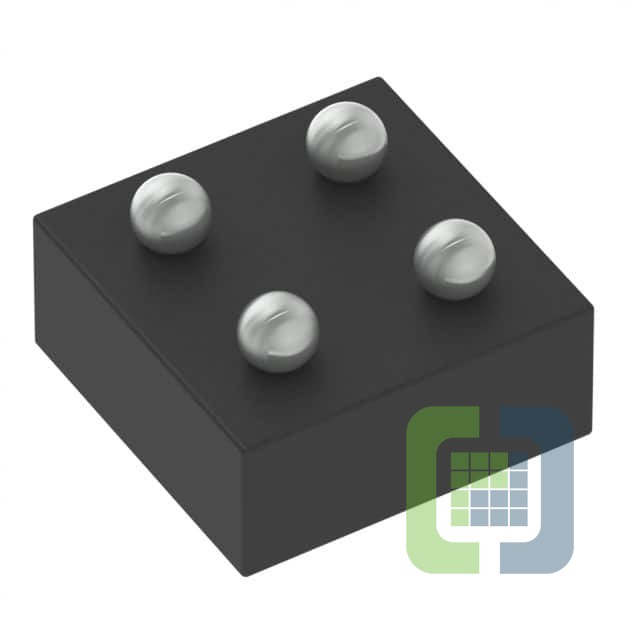

TLV70536YFPT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.6V 200MA 4DSBGA
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,031
Can ship immediately
Pricing:
- 1$0.64
- 2,000$0.2201
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):3.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.25V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):55 µA
- Current - Supply (Max):315 µA
- PSRR:80dB ~ 55dB (10kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:4-XFBGA, DSBGA
- Supplier Device Package:4-DSBGA (0.8x0.8)
