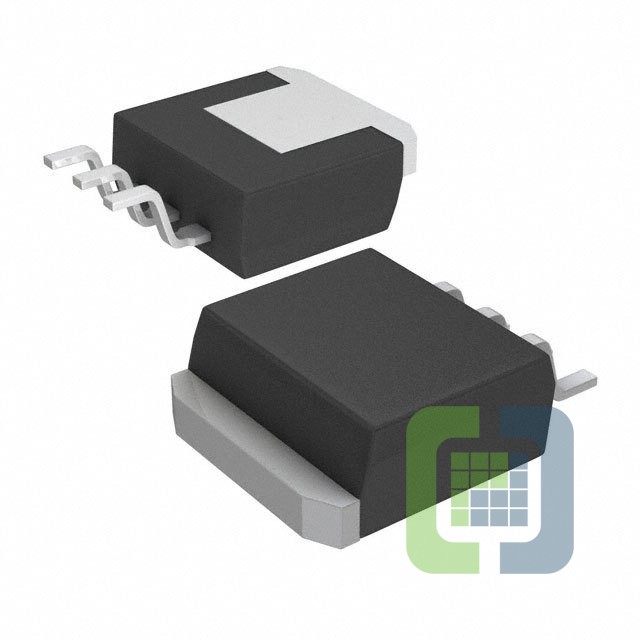

TLV1117CKTTRG3

Technical Details

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):15V
• Voltage - Output (Min/Fixed):1.25V
• Voltage - Output (Max):13.7V
• Voltage Dropout (Max):1.3V @ 800mA

• Current - Output:800mA
• Current - Quiescent (Iq):10 mA
• Current - Supply (Max):-
• PSRR:75dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature
• Operating Temperature:0°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
• Supplier Device Package:DDPAK/TO-263-3
