TLV75201PDSQT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A 10WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,118
Can ship immediately
Pricing:
- 1$0.87
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.55V
- Voltage - Output (Max):5.5V
- Voltage Dropout (Max):1.05V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):35 µA
- Current - Supply (Max):-
- PSRR:50dB ~ 30dB (1kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

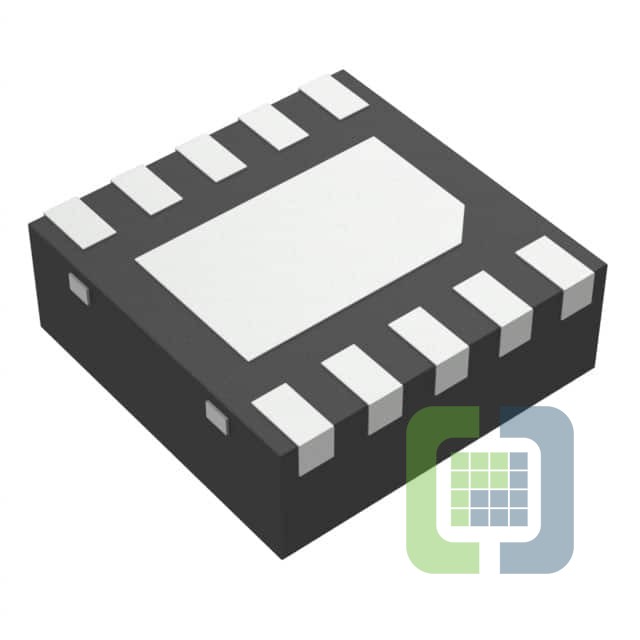

- Package / Case:10-WFDFN Exposed Pad
- Supplier Device Package:10-WSON (2x2)
