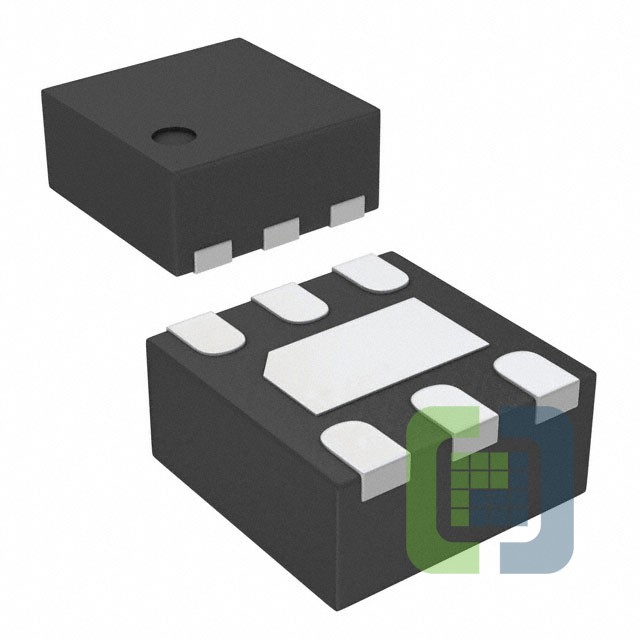

MP2013AGG-5-P
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 150MA 6QFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MP2013AGG-5-P Datasheet
-
ECAD Model
- Share
In Stock: 668
Can ship immediately
Pricing:
- 1$1.69
- 500$0.945
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.85V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):7 µA
- Current - Supply (Max):47 µA
- PSRR:58dB ~ 55dB (100Hz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-VDFN Exposed Pad
- Supplier Device Package:6-QFN (2x2)
