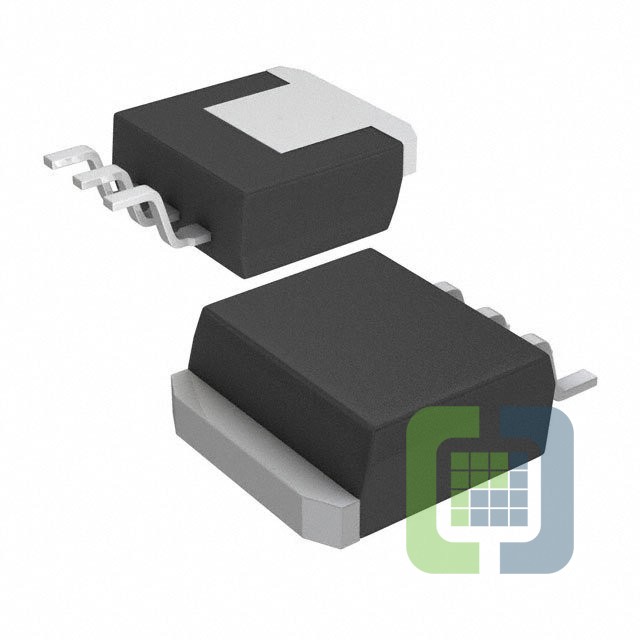

LM2940S-12
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 12V 1A DDPAK/TO263-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 421
Can ship immediately
Pricing:
- 1$3.01
- 270$1.922
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):12V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):15 mA
- PSRR:66dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package:DDPAK/TO-263-3
