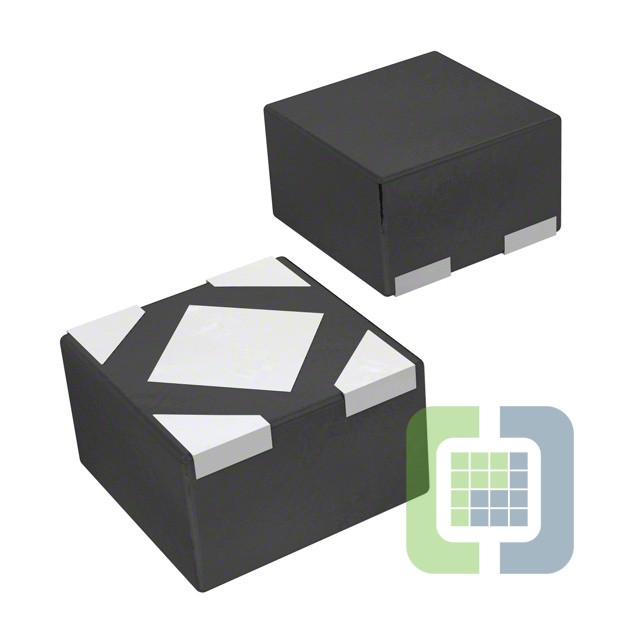

NCP114AMX125TCG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.25V 300MA 4UDFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP114AMX125TCG Datasheet
-
ECAD Model
- Share
In Stock: 27,015,102
Can ship immediately
Pricing:
- 1$0.37
- 3,000$0.0654
- 6,000$0.05886
- 15,000$0.05232
- 30,000$0.04905
- 75,000$0.04349
- 150,000$0.04186
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:300mA
- Current - Quiescent (Iq):95 µA
- Current - Supply (Max):-
- PSRR:75dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:4-UDFN Exposed Pad
- Supplier Device Package:4-UDFN (1.0x1.0)
