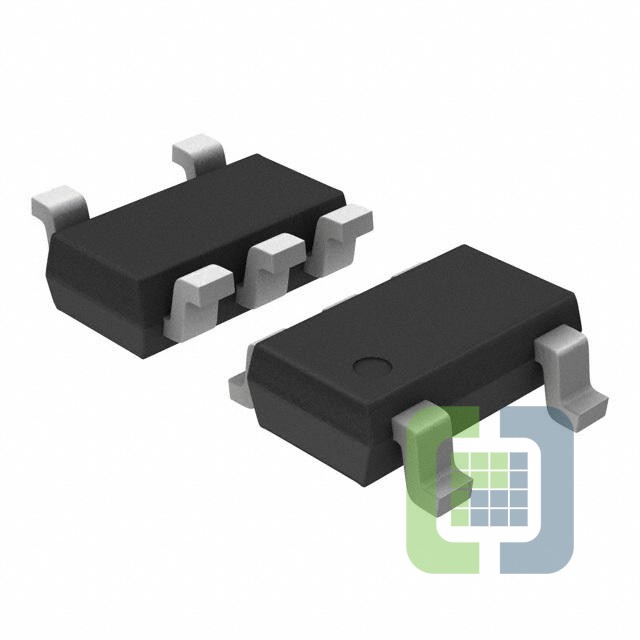

PAM3112DAB120
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.2V 300MA TSOT25
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet PAM3112DAB120 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$0.41
- 3,000$0.1089
- 6,000$0.1023
- 15,000$0.0957
- 30,000$0.08778
- 75,000$0.08448
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.3V @ 300mA (Typ)
- Current - Output:300mA
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):-
- PSRR:70dB ~ 65dB (100Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:TSOT-25
