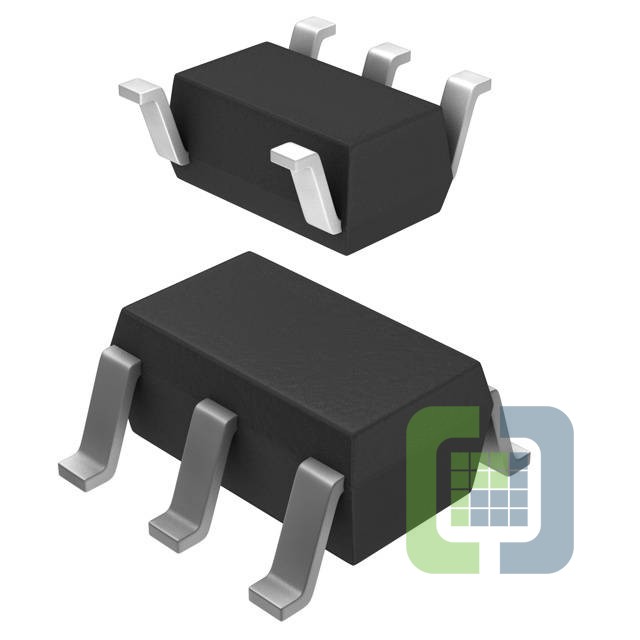

AP2202K-ADJTRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 150MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP2202K-ADJTRG1 Datasheet
-
ECAD Model
- Share
In Stock: 302
Can ship immediately
Pricing:
- 1$0.43
- 3,000$0.09072
- 6,000$0.08568
- 15,000$0.07812
- 30,000$0.07308
- 75,000$0.06552
- 150,000$0.063
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):13.2V
- Voltage - Output (Min/Fixed):2.3V
- Voltage - Output (Max):12.85V
- Voltage Dropout (Max):0.35V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):150 µA
- Current - Supply (Max):2.5 mA
- PSRR:75dB (100Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
