AZ1117EH-1.8TRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.8V 1A SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AZ1117EH-1.8TRG1 Datasheet
-
ECAD Model
- Share
In Stock: 555
Can ship immediately
Pricing:
- 1$0.44
- 4,000$0.0778
- 8,000$0.07002
- 12,000$0.06224
- 28,000$0.05835
- 100,000$0.05057
- 200,000$0.04979
Quote It
Technical Details
- Series:AZ1117E
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Last Time Buy
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):13V
- Voltage - Output (Min/Fixed):1.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.3V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:70dB (120Hz ~ 1kHz)
- Control Features:-
- Protection Features:Thermal Shutdown
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

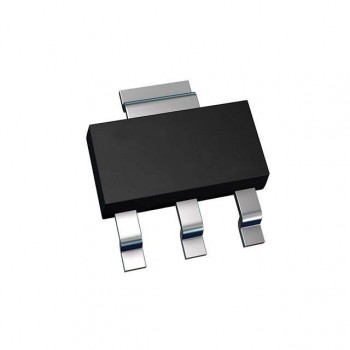

- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223
