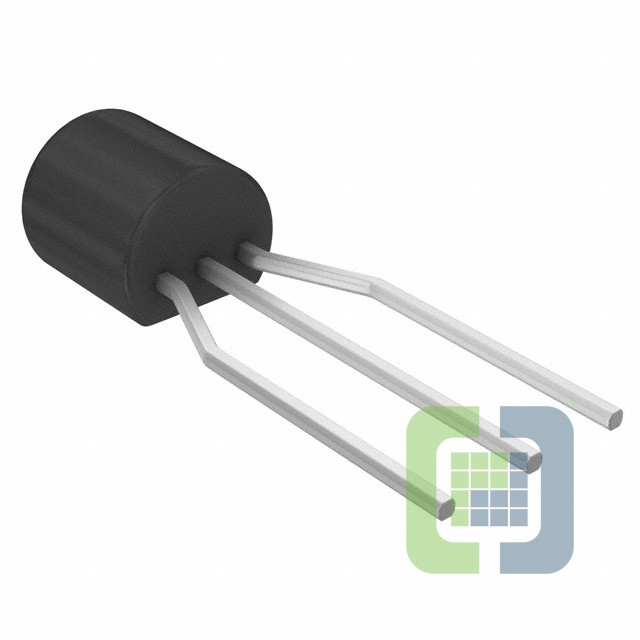

L78L09ACZ-AP
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 9V 100MA TO92-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet L78L09ACZ-AP Datasheet
-
ECAD Model
- Share
In Stock: 871
Can ship immediately
Pricing:
- 1$0.47
- 2,000$0.08652
- 6,000$0.08171
- 10,000$0.0745
- 50,000$0.06248
- 100,000$0.06153
Quote It
Technical Details
- Series:-
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):9V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:100mA
- Current - Quiescent (Iq):5.5 mA
- Current - Supply (Max):6 mA
- PSRR:44dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Supplier Device Package:TO-92-3
Related Products
IC REG LINEAR 3.3V 30MA SOT89-5
S-873344AUP-OAHT2U Datasheet- 1: $1.06000
- 1000: $0.48000
- 2000: $0.44800

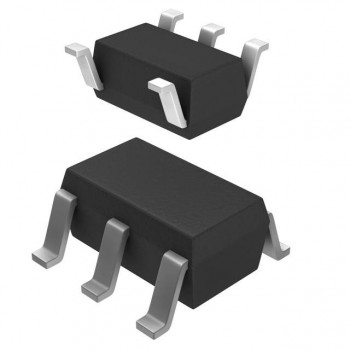

IC REG LINEAR 3.9V 600MA SOT25
