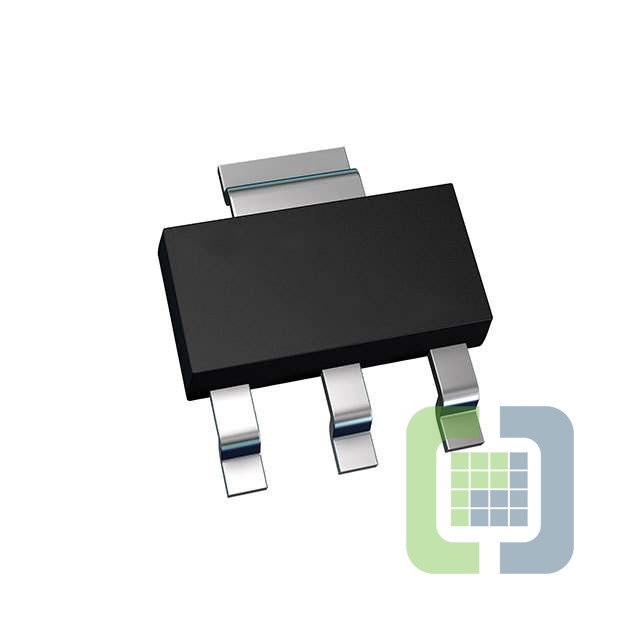

ZLDO1117G25TA
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 1A SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ZLDO1117G25TA Datasheet
-
ECAD Model
- Share
In Stock: 1,568,181
Can ship immediately
Pricing:
- 1$0.51
- 1,000$0.187
- 2,000$0.1705
- 5,000$0.1595
- 10,000$0.1485
- 25,000$0.1408
- 50,000$0.1375
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.35V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:80dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223
