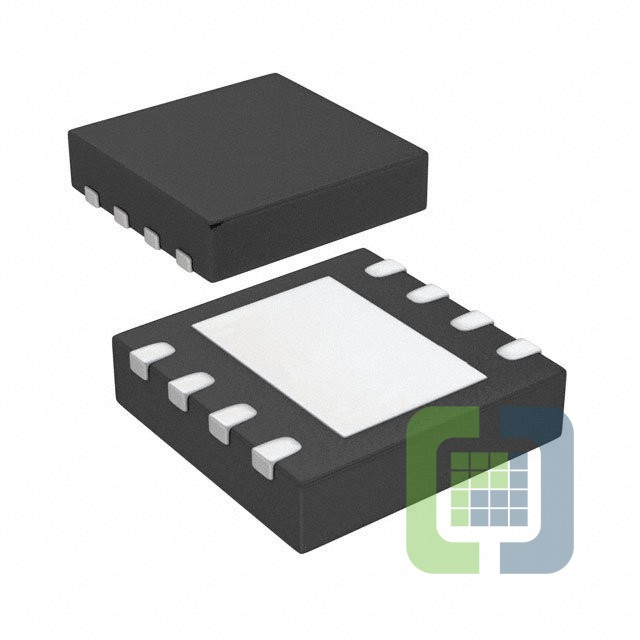

MCP1725-0802E/MC
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 0.8V 500MA 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1725-0802E/MC Datasheet
-
ECAD Model
- Share
In Stock: 422
Can ship immediately
Pricing:
- 1$0.57
- 25$0.47622
- 100$0.43202
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.35V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):220 µA
- Current - Supply (Max):-
- PSRR:60dB (100Hz)
- Control Features:Enable, Power Good
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VFDFN Exposed Pad
- Supplier Device Package:8-DFN (2x3)
