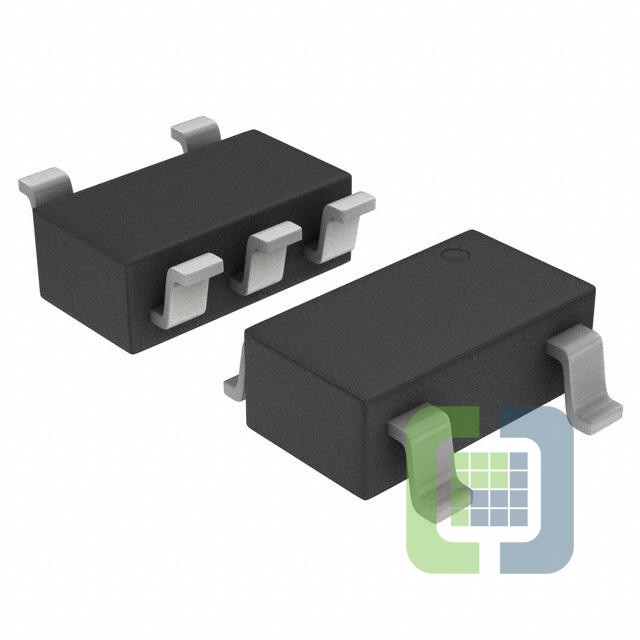

NCP502SN33T1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 80MA 5TSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP502SN33T1G Datasheet
-
ECAD Model
- Share
In Stock: 90,024,195
Can ship immediately
Pricing:
- 1$0.61
- 3,000$0.22289
- 6,000$0.20851
- 15,000$0.19413
- 30,000$0.18406
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.2V @ 80mA
- Current - Output:80mA
- Current - Quiescent (Iq):40 µA
- Current - Supply (Max):90 µA
- PSRR:55dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
