MC7808CDTRKG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 8V 1A DPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MC7808CDTRKG Datasheet
-
ECAD Model
- Share
In Stock: 5,035,146
Can ship immediately
Pricing:
- 1$0.68
- 2,500$0.22968
- 5,000$0.21384
- 12,500$0.20592
- 25,000$0.198
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):-
- PSRR:62dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:DPAK
Related Products

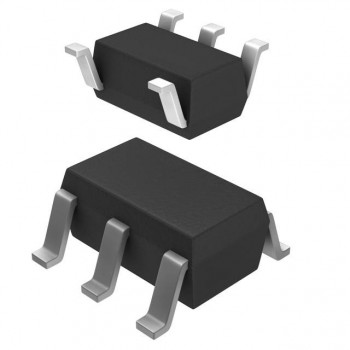

IC REG LINEAR 2.9V 150MA SOT23-5
- 1: $0.68000
- 1000: $0.27200
- 2000: $0.24650

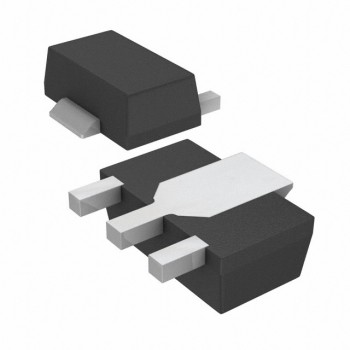

IC REG LINEAR 3.3V 1A SOT89-5
