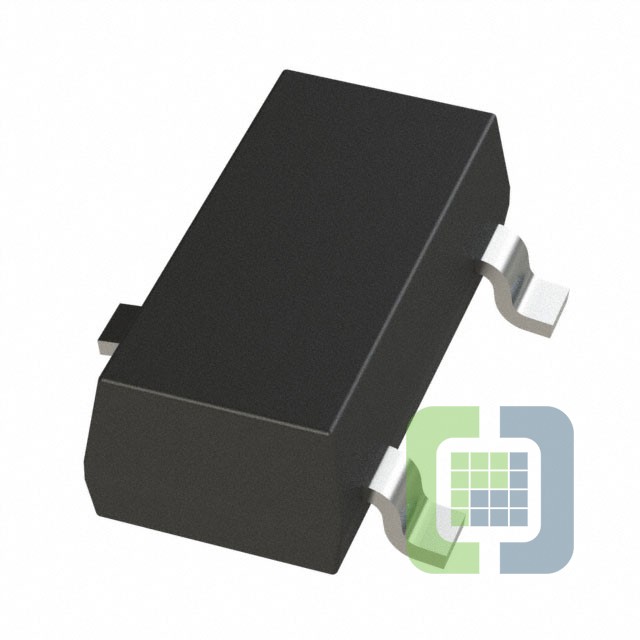

TPS7A0522PDBZT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.2V 200MA SOT23-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 362
Can ship immediately
Pricing:
- 1$0.72
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.382V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):3 µA
- Current - Supply (Max):-
- PSRR:40dB (1kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23-3
