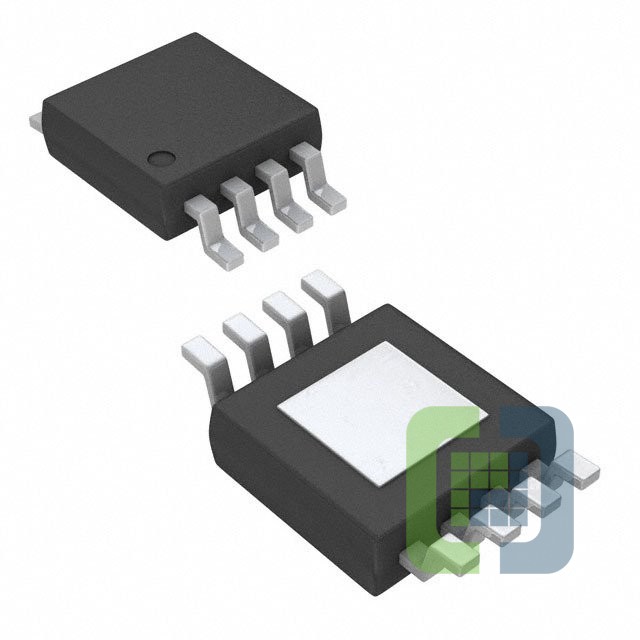

AP7176BMP-13
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 3A 8MSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7176BMP-13 Datasheet
-
ECAD Model
- Share
In Stock: 82,125,129
Can ship immediately
Pricing:
- 1$0.87
- 2,500$0.35
- 5,000$0.3325
- 12,500$0.32
- 25,000$0.31
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):3.65V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):3.12V
- Voltage Dropout (Max):0.53V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):1.5 mA
- Current - Supply (Max):-
- PSRR:-
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Power On Reset (POR), Short Circuit, Soft Start
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:8-MSOP-EP
