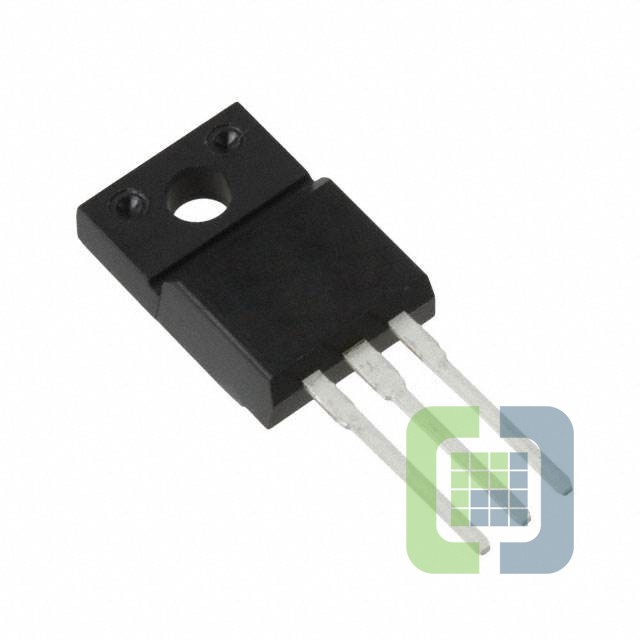

NJM78M09FA
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 9V 500MA TO220F
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM78M09FA Datasheet
-
ECAD Model
- Share
In Stock: 805
Can ship immediately
Pricing:
- 1$0.89
- 10$0.781
- 25$0.692
- 100$0.6026
- 250$0.52452
- 500$0.4464
- 1,000$0.35712
- 2,500$0.32364
- 5,000$0.30132
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):9V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:500mA
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:70dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3 Full Pack
- Supplier Device Package:TO-220F
