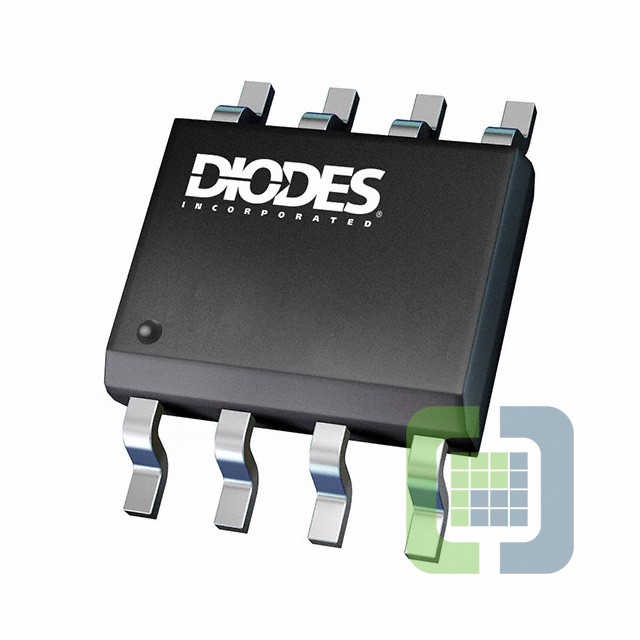

PAM3131BECR

Technical Details

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):3.6V
• Voltage - Output (Min/Fixed):0.9V
• Voltage - Output (Max):3.3V
• Voltage Dropout (Max):0.3V @ 3A

• Current - Output:3A
• Current - Quiescent (Iq):150 µA
• Current - Supply (Max):1 mA
• PSRR:64dB ~ 58db (100Hz ~ 1kHz)
• Control Features:Enable, Power Good
• Protection Features:Over Current, Over Temperature, Short Circuit
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
• Supplier Device Package:8-SO-EP
