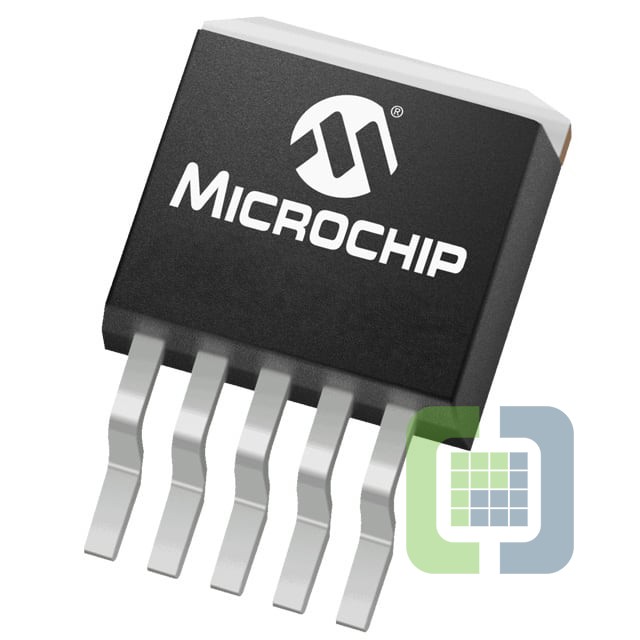

MCP1791-3302E/ET
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 70MA 5DDPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1791-3302E/ET Datasheet
-
ECAD Model
- Share
In Stock: 622
Can ship immediately
Pricing:
- 1$0.98
- 25$0.82034
- 100$0.74654
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.3V @ 70mA
- Current - Output:70mA
- Current - Quiescent (Iq):130 µA
- Current - Supply (Max):210 µA
- PSRR:90dB ~ 80dB (100Hz ~ 1kHz)
- Control Features:Enable, Power Good
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:5-DDPAK
