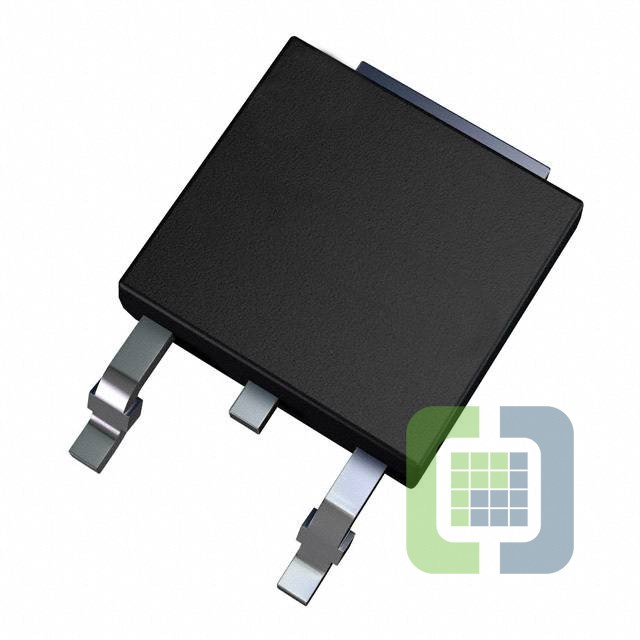

LMS8117ADTX-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A TO252-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 595
Can ship immediately
Pricing:
- 1$1.51
- 2,500$0.6062
- 5,000$0.57589
- 12,500$0.55424
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):13.8V
- Voltage Dropout (Max):1.25V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:60 ~ 75 dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
