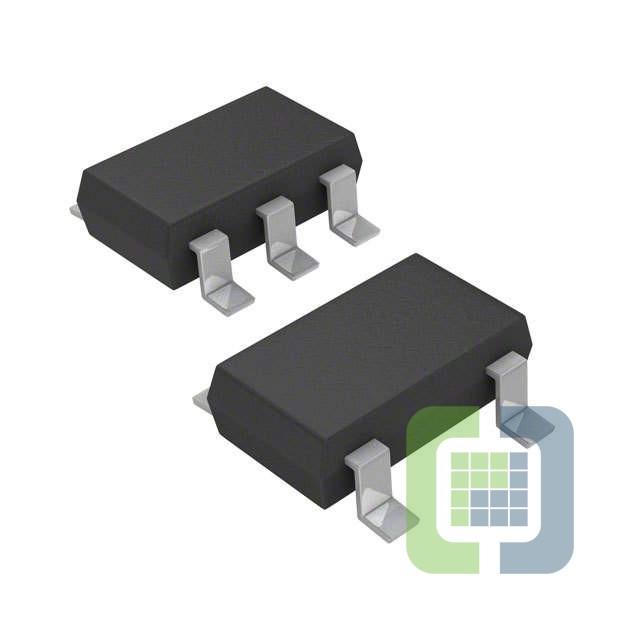

ADM7160AUJZ-2.5-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 200MA TSOT5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADM7160AUJZ-2.5-R7 Datasheet
-
ECAD Model
- Share
In Stock: 472
Can ship immediately
Pricing:
- 1$1.57
- 3,000$0.67499
- 6,000$0.64125
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.23V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):20 µA
- Current - Supply (Max):350 µA
- PSRR:54dB ~ 43dB (100kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:TSOT-5
