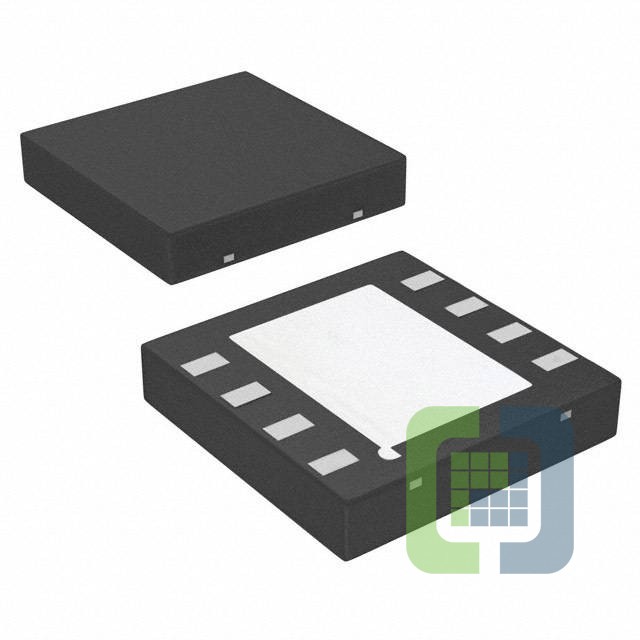

LM1117ILD-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 800MA 8WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 768
Can ship immediately
Pricing:
- 1$1.67
- 1,000$0.717
- 2,000$0.6692
- 5,000$0.63574
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):13.8V
- Voltage Dropout (Max):1.2V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-WDFN Exposed Pad
- Supplier Device Package:8-WSON (4x4)
