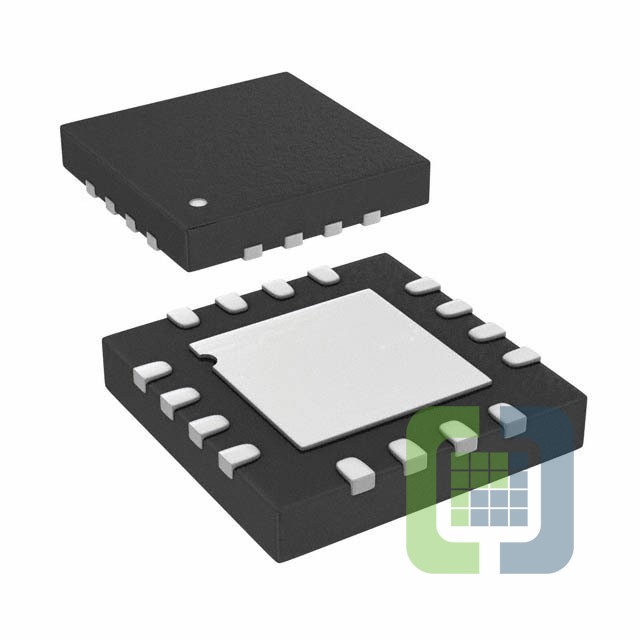

ADP322ACPZ-189-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 1.2/1.8/2.5V 16LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP322ACPZ-189-R7 Datasheet
-
ECAD Model
- Share
In Stock: 269
Can ship immediately
Pricing:
- 1$1.69
- 1,500$0.84057
- 3,000$0.7826
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:3
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V, 1.8V, 2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-, -, 0.17V @ 200mA
- Current - Output:200mA, 200mA, 200mA
- Current - Quiescent (Iq):160 µA
- Current - Supply (Max):380 µA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:16-WFQFN Exposed Pad, CSP
- Supplier Device Package:16-LFCSP-WQ (3x3)
