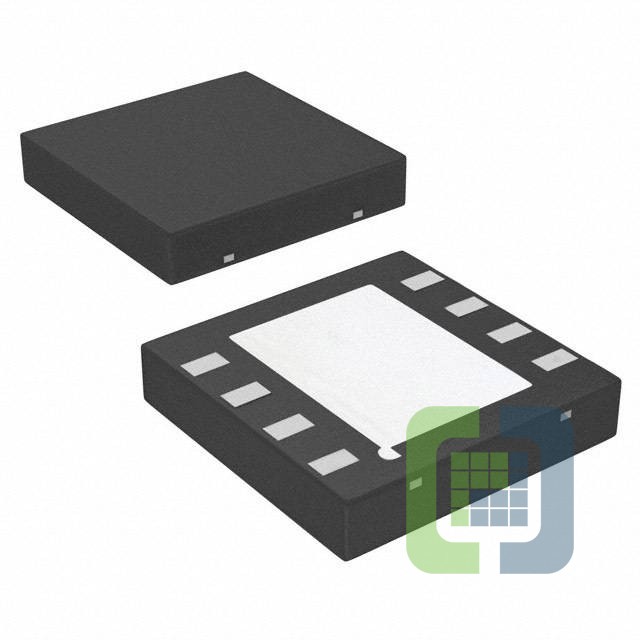

LM2941LDX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A 8WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$1.86
- 4,500$0.8046
- 9,000$0.7748
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):20V
- Voltage Dropout (Max):1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):15 mA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-WDFN Exposed Pad
- Supplier Device Package:8-WSON (4x4)
