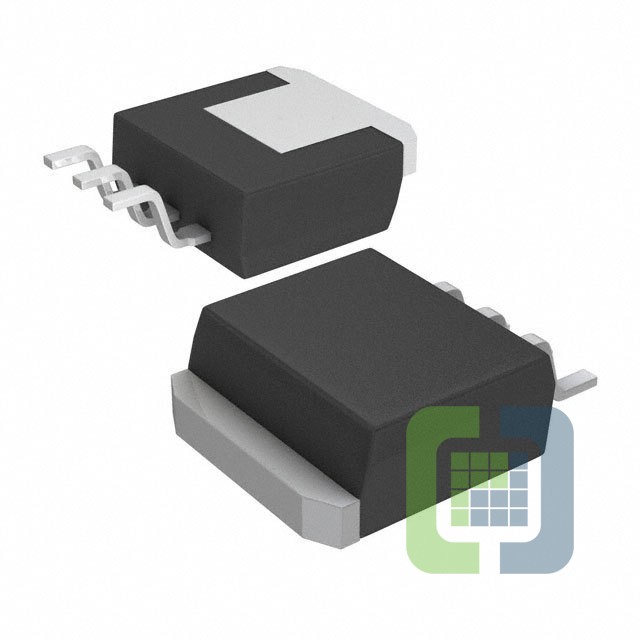

LM1086CSX-2.5/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 2.5V 1.5A DDPAK
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 239
Can ship immediately
Pricing:
- 1$1.97
- 500$1.1025
- 1,000$0.9135
- 2,500$0.8505
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):27V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:72dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package:DDPAK/TO-263-3
