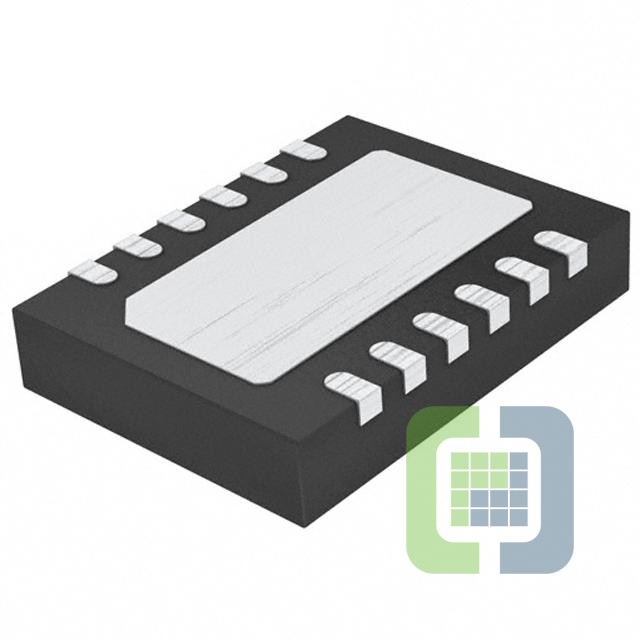

LT3066IDE-3.3#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 500MA 12DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3066IDE-3.3#PBF Datasheet
-
ECAD Model
- Share
In Stock: 261
Can ship immediately
Pricing:
- 1$5.87
- 25$3.89733
- 100$3.22244
- 250$3.06134
- 500$2.99227
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.51V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):125 µA
- Current - Supply (Max):25 mA
- PSRR:71dB (120Hz)
- Control Features:Current Limit, Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-WFDFN Exposed Pad
- Supplier Device Package:12-DFN (4x3)
