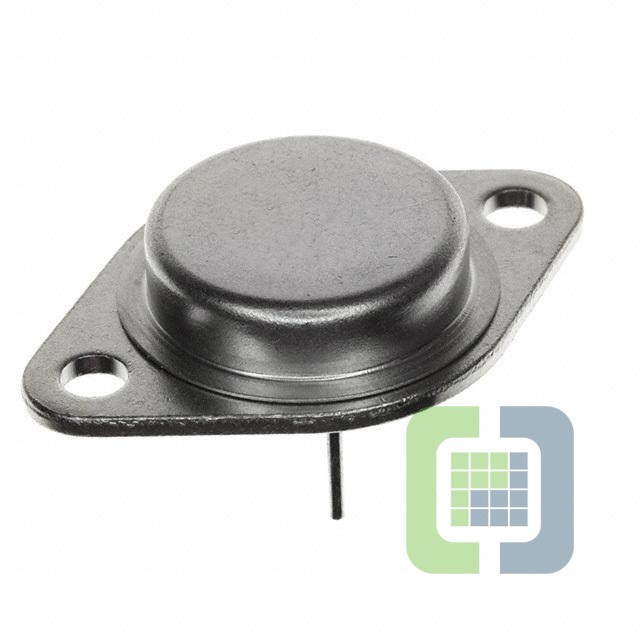

SG7915K-JAN
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR -15V 1.5A TO3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet SG7915K-JAN Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$40.45
- 10$37.82179
- 25$34.97969
Quote It
Technical Details
- Series:Military, MIL-STD-883
- Package:Tray
- Part Status:Active
- Output Configuration:Negative
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):-40V
- Voltage - Output (Min/Fixed):-15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2.3V @ 1A
- Current - Output:1.5A
- Current - Quiescent (Iq):4 mA
- Current - Supply (Max):-
- PSRR:54dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-55°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-204AA, TO-3
- Supplier Device Package:TO-3
