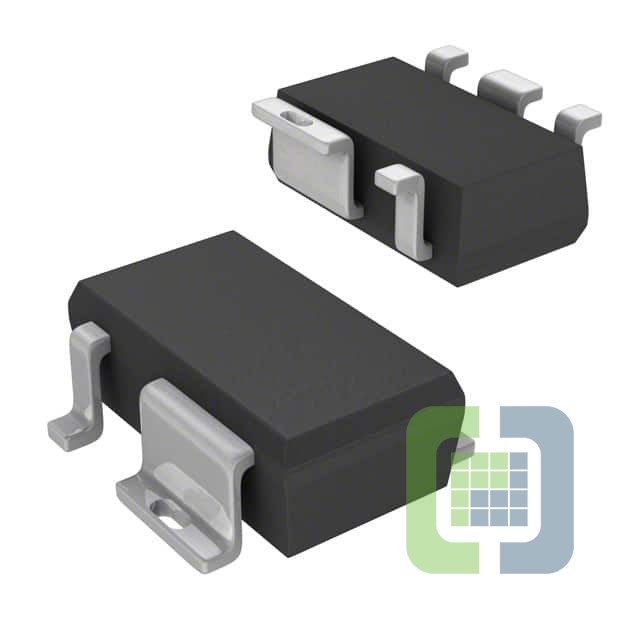

TLE4294GV50HTSA1
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 30MA SCT595-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TLE4294GV50HTSA1 Datasheet
-
ECAD Model
- Share
In Stock: 535
Can ship immediately
Pricing:
- 1$1.18
- 3,000$0.47832
- 6,000$0.45554
Quote It
Technical Details
- Series:Automotive, AEC-Q100, OPTIREG™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.4V @ 20mA
- Current - Output:30mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):4 mA
- PSRR:60dB (100Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount
- Package / Case:6-SMD (5 Leads), Gull Wing
- Supplier Device Package:PG-SCT595-5
