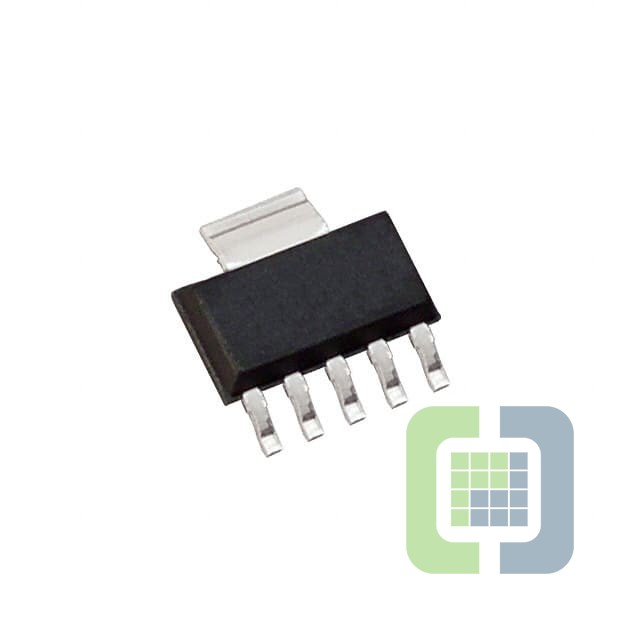

TPS72515DCQG4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.5V 1A SOT223-6
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 227
Can ship immediately
Pricing:
- 1$2.31
- 234$2.31
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.32V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):225 µA
- Current - Supply (Max):325 µA
- PSRR:60dB (1kHz)
- Control Features:Enable, Reset
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-223-6
- Supplier Device Package:SOT-223-6
