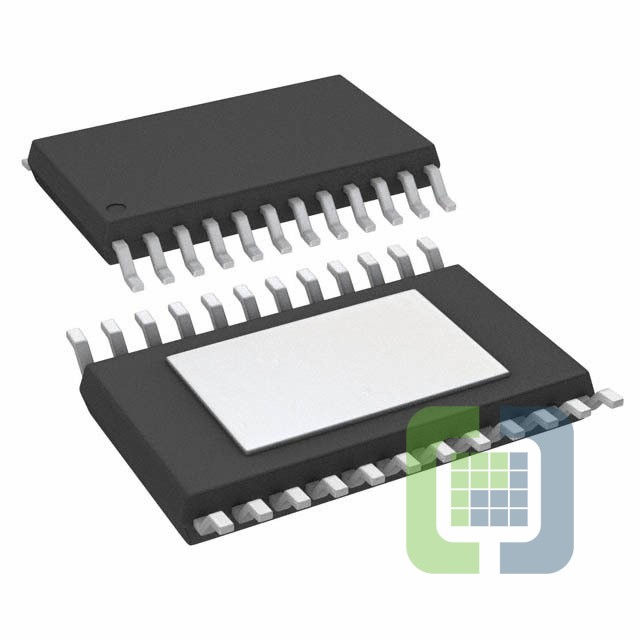

TPS70402PWPG4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 24HTSSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$4.18
- 120$4.18
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.22V
- Voltage - Output (Max):5.5V
- Voltage Dropout (Max):0.25V @ 1A, -
- Current - Output:1A, 2A
- Current - Quiescent (Iq):250 µA
- Current - Supply (Max):-
- PSRR:65dB (1kHz), 60dB (1kHz)
- Control Features:Enable, Power Good, Reset, Sequencing
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:24-HTSSOP
