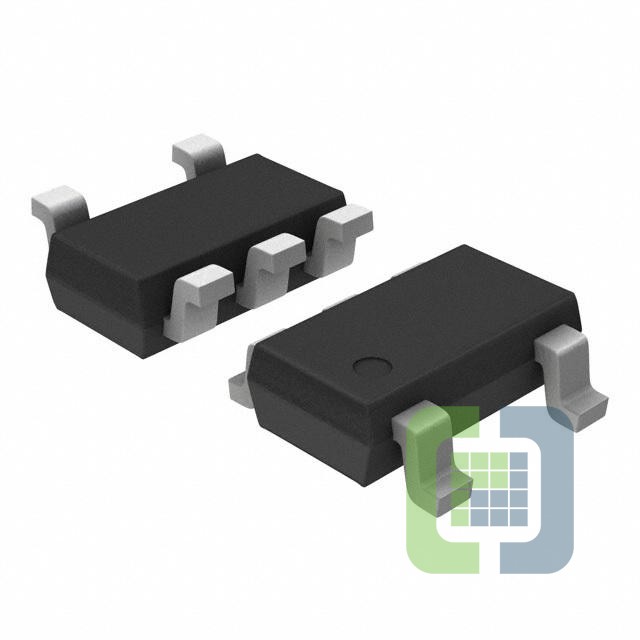

NCP718ASN330T1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 3.3V 300MA TSOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP718ASN330T1G Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$0.46
- 3,000$0.1395
- 6,000$0.1305
- 15,000$0.1215
- 30,000$0.1152
- 75,000$0.1125
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.44V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):8 µA
- Current - Supply (Max):300 µA
- PSRR:60dB (1kHz)
- Control Features:Soft Start
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:TSOT-23-5
