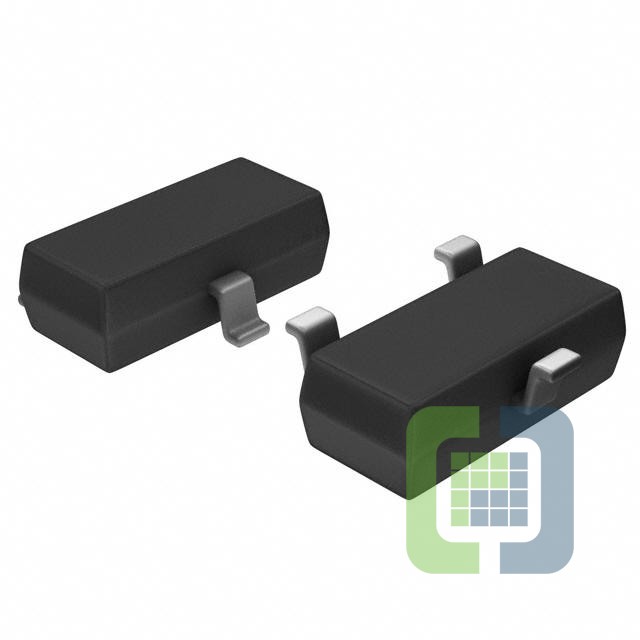

MCP1754ST-5002E/CB
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 150MA SOT23A-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1754ST-5002E/CB Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$0.42
- 3,000$0.3193
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):250 µA
- PSRR:72dB (1kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23A-3
