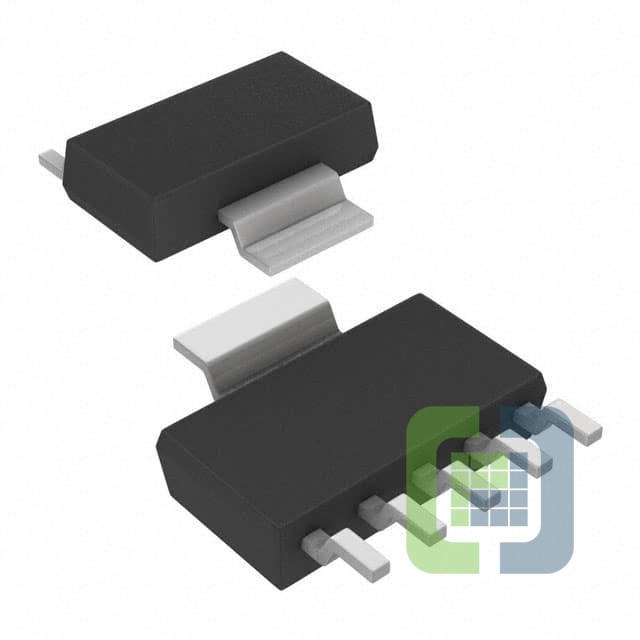

MCP1825T-ADJE/DC
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1825T-ADJE/DC Datasheet
-
ECAD Model
- Share
In Stock: 3,381
Can ship immediately
Pricing:
- 1$0.54
- 4,000$0.4017
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.35V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):220 µA
- Current - Supply (Max):-
- PSRR:60dB (100Hz)
- Control Features:Enable, Power Good
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-223-6
- Supplier Device Package:SOT-223-5
