TPS74501PQWDRVRQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
- 1$1.16
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.55V
- Voltage - Output (Max):5.5V
- Voltage Dropout (Max):0.72V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):36 µA
- Current - Supply (Max):-
- PSRR:57dB ~ 35dB (1kHz ~ 1MHz)
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

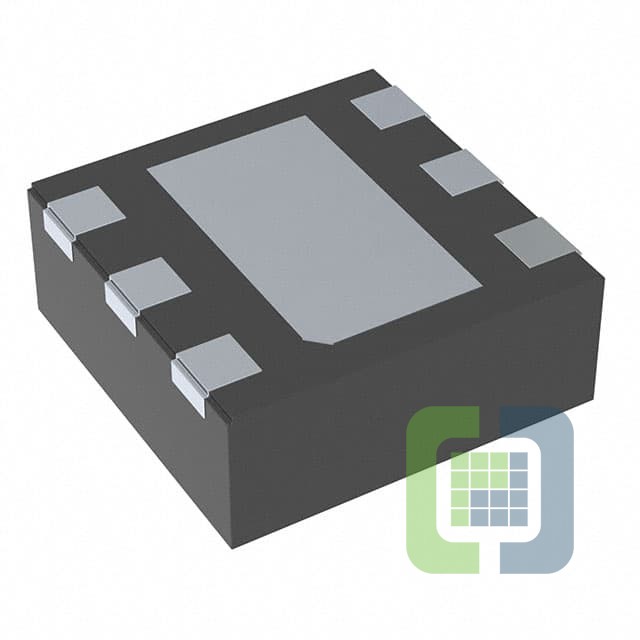

- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (2x2)
