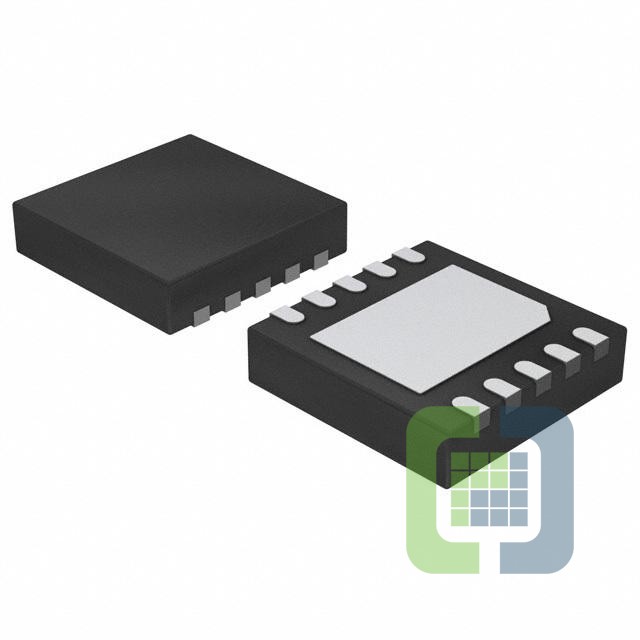

NCP3335AMNADJR2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 10DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP3335AMNADJR2G Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$1.32
- 3,000$0.5544
- 6,000$0.52668
- 15,000$0.50688
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):10V
- Voltage Dropout (Max):0.34V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):190 µA
- Current - Supply (Max):14 mA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-DFN (3x3)
