NCV8537MN330R2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 500MA 10DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV8537MN330R2G Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$1.54
- 3,000$0.616
- 6,000$0.5852
- 15,000$0.5632
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.34V @ 500mA (Typ)
- Current - Output:500mA
- Current - Quiescent (Iq):220 µA
- Current - Supply (Max):14 mA
- PSRR:-
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

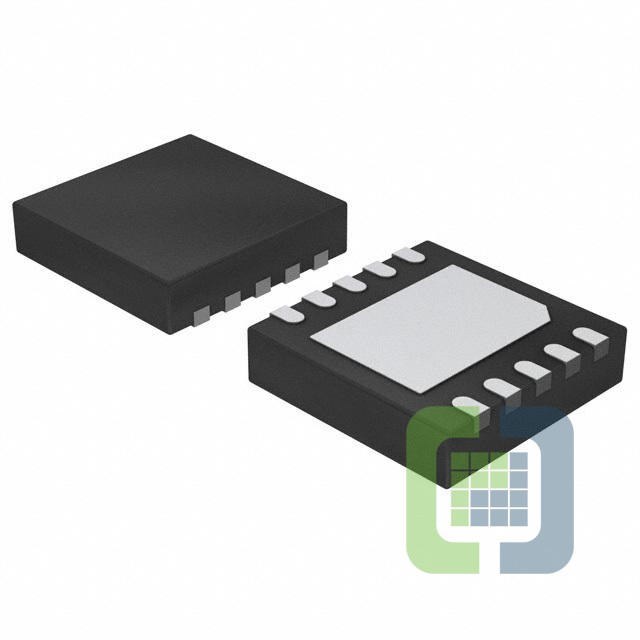

- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-DFN (3x3)
