TPS7A3701DRVR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
- 1$1.82
- 3,000$0.78435
- 6,000$0.7553
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):5.37V
- Voltage Dropout (Max):0.2V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):400 µA
- Current - Supply (Max):1.3 mA
- PSRR:58dB ~ 37dB (100Hz ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

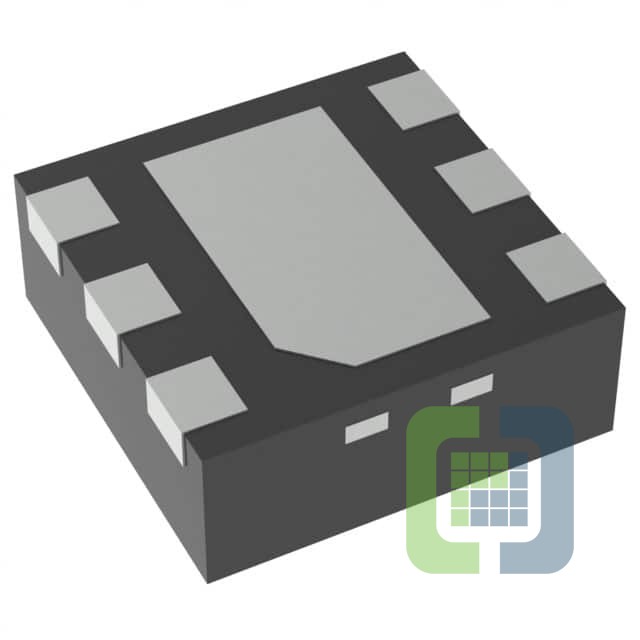

- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (2x2)
