NCV47710PDAJR2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 350MA 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV47710PDAJR2G Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$2.48
- 2,500$0.972
- 5,000$0.936
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):20V
- Voltage Dropout (Max):0.5V @ 150mA
- Current - Output:350mA
- Current - Quiescent (Iq):230 µA
- Current - Supply (Max):50 mA
- PSRR:70dB (100Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount

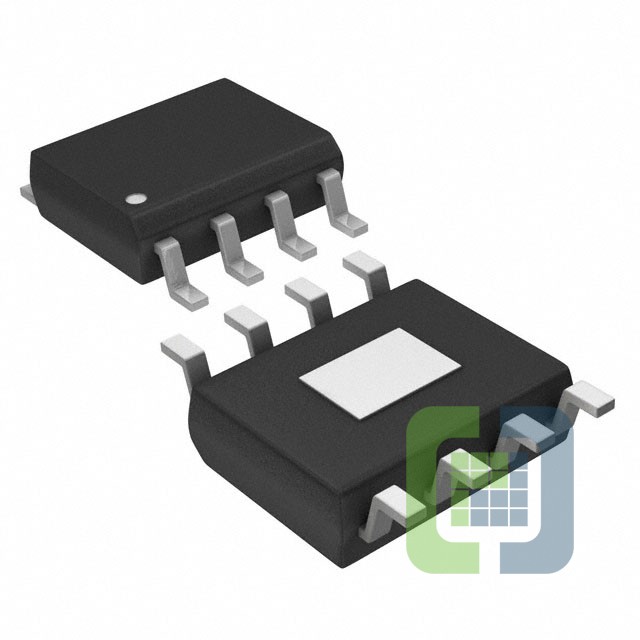

- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOIC-EP
