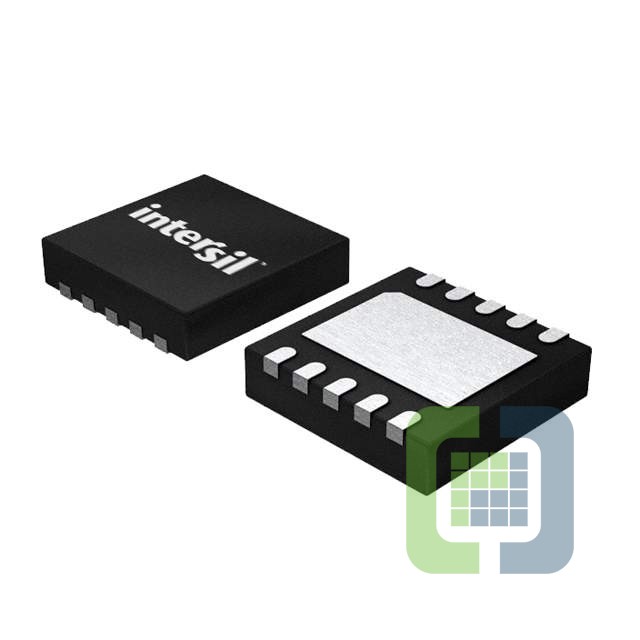

ISL80103IRAJZ
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 3A 10DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ISL80103IRAJZ Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$2.94
- 10$2.63706
- 25$2.48749
- 100$2.11915
- 300$1.98981
- 500$1.74108
- 1,000$1.44261
- 2,500$1.34312
- 5,000$1.29338
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.244V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):9 mA
- Current - Supply (Max):12 mA
- PSRR:62dB ~ 55dB (120Hz ~ 1kHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-DFN (3x3)
