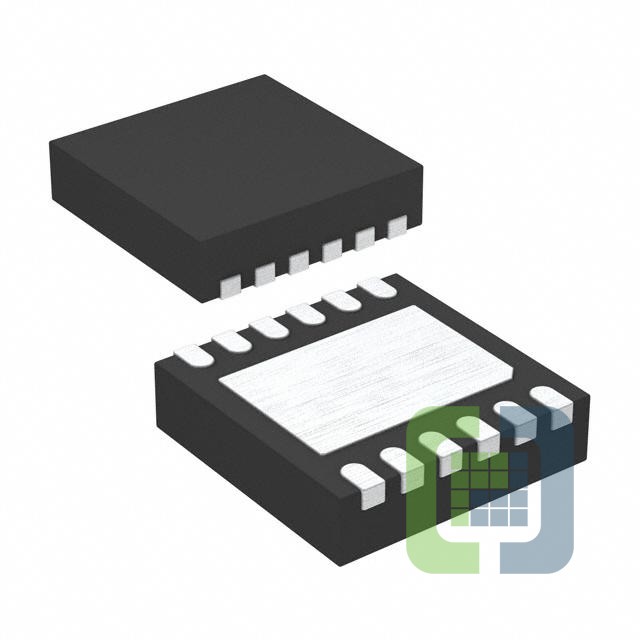

LT3094IDD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN NEG ADJ 500MA 12DFN
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$7.8
- 25$5.17888
- 100$4.28208
- 250$4.06799
- 500$3.97622
- 2,500$3.82328
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-2.3V
- Voltage - Output (Min/Fixed):-19.5V
- Voltage - Output (Max):0V
- Voltage Dropout (Max):0.41V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):2.35 mA
- Current - Supply (Max):23 mA
- PSRR:108dB ~ 28dB (120Hz ~ 10MHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-WFDFN Exposed Pad
- Supplier Device Package:12-DFN (3x3)
