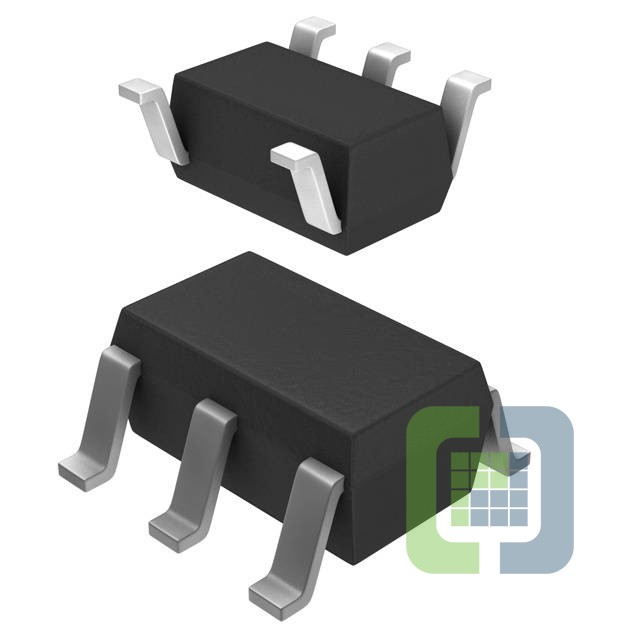

AP7330-W5-7
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 300MA SOT25
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7330-W5-7 Datasheet
-
ECAD Model
- Share
In Stock: 24,121
Can ship immediately
Pricing:
- 1$0.49
- 3,000$0.10314
- 6,000$0.09741
- 15,000$0.08882
- 30,000$0.08309
- 75,000$0.07449
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1V
- Voltage - Output (Max):4.5V
- Voltage Dropout (Max):0.31V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):78 µA
- Current - Supply (Max):-
- PSRR:80dB (1kHz)
- Control Features:EN
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-25
