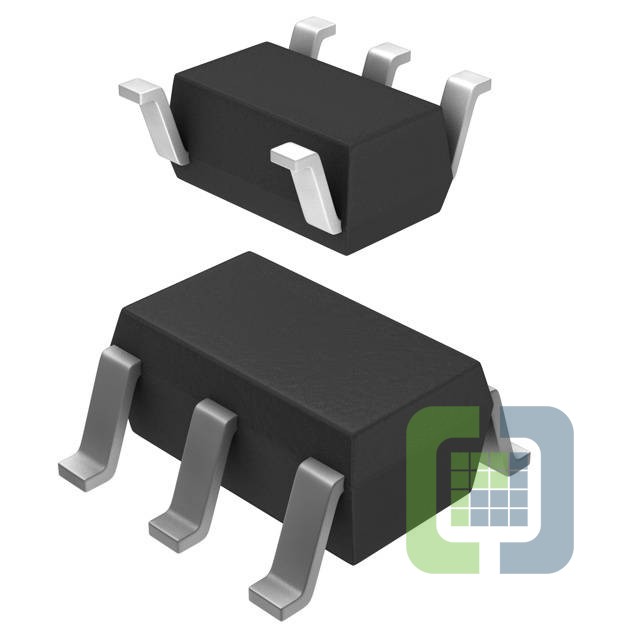

AP7380-50WR-7
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 150MA SOT25
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7380-50WR-7 Datasheet
-
ECAD Model
- Share
In Stock: 27,137
Can ship immediately
Pricing:
- 1$0.45
- 3,000$0.11963
- 6,000$0.11238
- 15,000$0.10513
- 30,000$0.09643
- 75,000$0.0928
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.1V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):3 µA
- Current - Supply (Max):3 µA
- PSRR:-
- Control Features:-
- Protection Features:Current Limit, Thermal Shutdown
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-25
