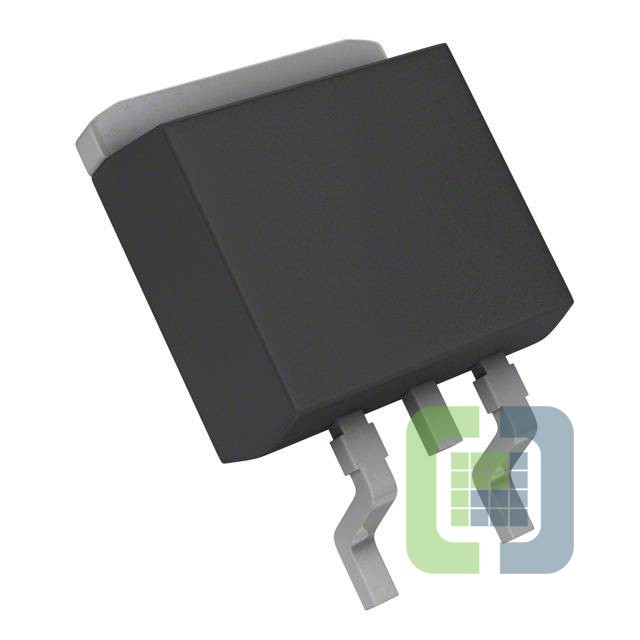

BA78M09FP-E2

Technical Details

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):26V
• Voltage - Output (Min/Fixed):9V
• Voltage - Output (Max):-
• Voltage Dropout (Max):2V @ 500mA (Typ)

• Current - Output:500mA
• Current - Quiescent (Iq):6 mA
• Current - Supply (Max):800 µA
• PSRR:67dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
• Supplier Device Package:TO-252-3
