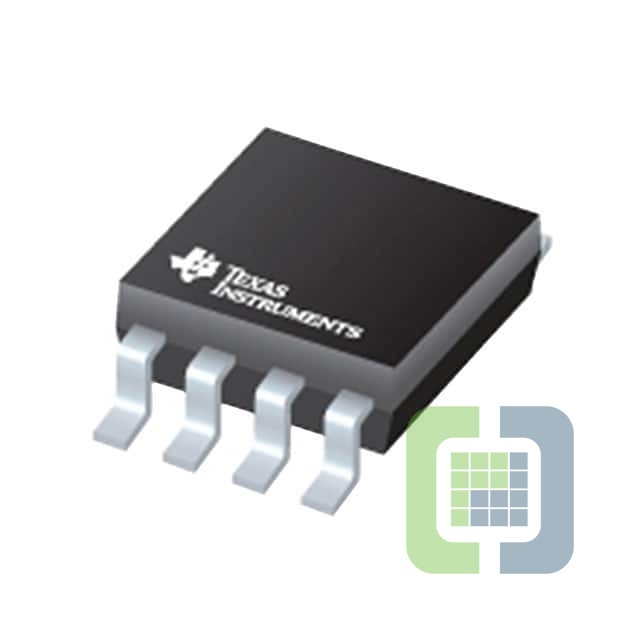

TPS7B8233QDGNRQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 3.3V/5V 300MA 8MSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$1.63
- 2,500$0.77085
- 5,000$0.7423
- 12,500$0.71375
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):3.3V, 5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.25V @ 300mA, 1V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):5 µA
- Current - Supply (Max):-
- PSRR:60dB (100Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:8-MSOP-PowerPad
