ADP7118ARDZ-5.0-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 200MA 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP7118ARDZ-5.0-R7 Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$2.44
- 1,000$1.21184
- 2,000$1.12827
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.42V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):140 µA
- Current - Supply (Max):320 µA
- PSRR:88dB ~ 50dB (10kHz ~ 1MHz)
- Control Features:Enable, Soft Start
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount

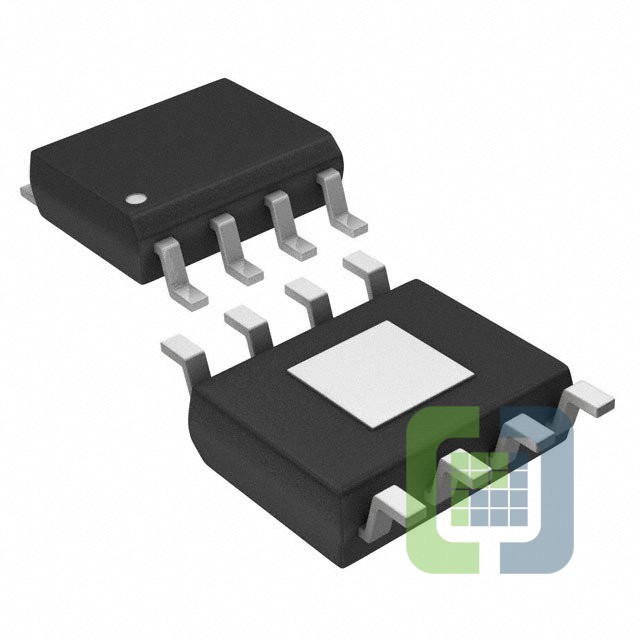

- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOIC-EP
