NCV5500DTADJRKG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA DPAK-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV5500DTADJRKG Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$0.91
- 2,500$0.35554
- 5,000$0.33102
- 12,500$0.31876
- 25,000$0.3065
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.7V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):500 µA
- Current - Supply (Max):20 mA
- PSRR:75dB ~ 70dB (120hZ ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

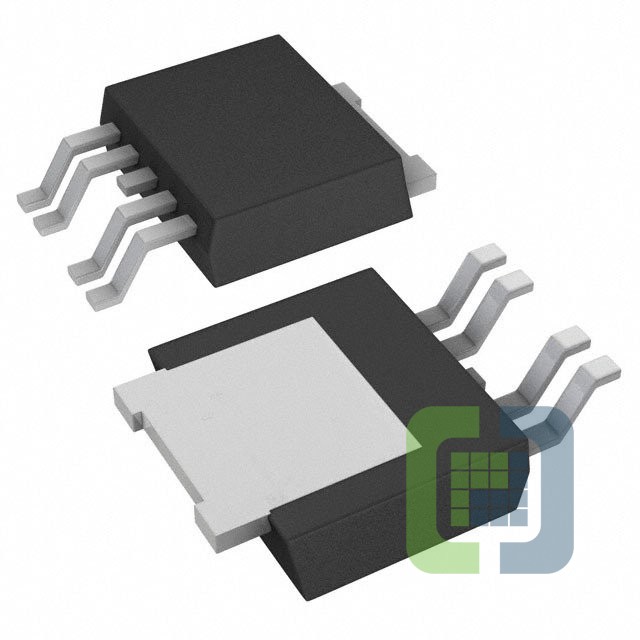

- Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Supplier Device Package:DPAK-5
